We produce all the cylindrical finishes required for your needs. Our technicians remain at your disposal, to find the optimum finish.

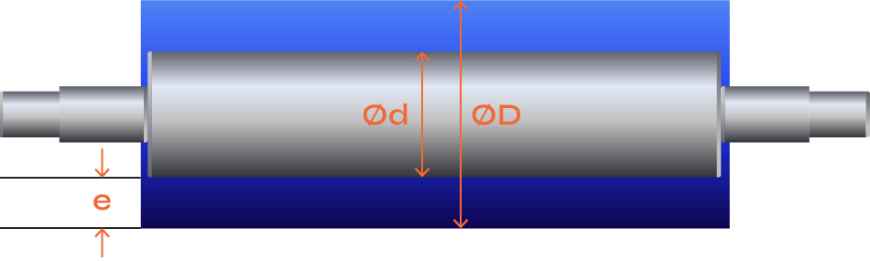

The cylindrical finish• Ød:The iron diameter
• ØD: The finished diameter
• e: coating thickness
• ØD = Ød + (2 × e)

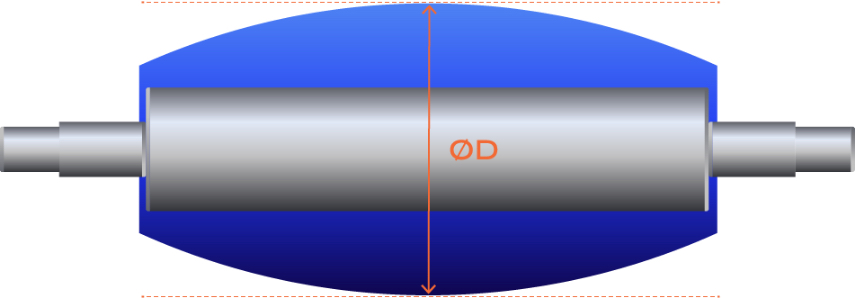

The parabolic curveThe curve is given in relation to ØD
The hyperbolic curveThe curve is given in relation to ØD

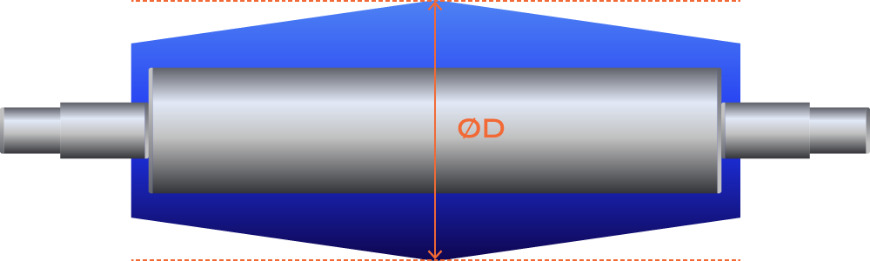

The biconical finishThe cone is given in relation to ØD
Exemple: cone of 2mm/D

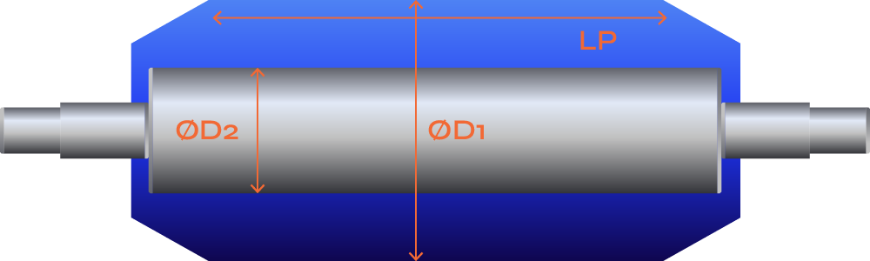

The cylindrical-biconical finishThe LP length defines the plate.
The ones are defined in relation to ØD.

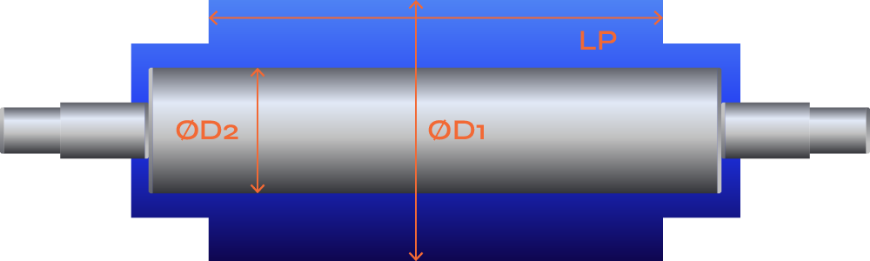

Relief-cuttingØD1 defines the covering diameter.
ØD2 defines the relief-cutting diameter.
The LP length defines the plate.
